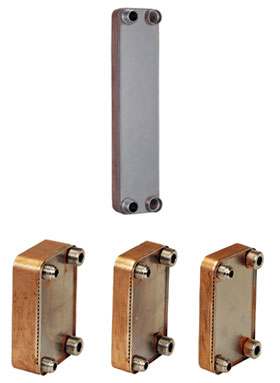

Nara brazed plate heat exchanger if of "compact size and high performance". All of our brazed plate heat exchangers, whatever their use is for only the highest quality materials are used to ensure the max. life time ans corrosion resistance. That means subjected to the burst pressure sample test which is five times of max. design pressure The bust pressure is in excess of 100bar. It is composed of high quality and thin corrugated evaporator, condenser, oil cooler etc. Connections are various in size; threaded, rotalock or soldering type. The brazed plate heat exchanger is the most suitable for use in reversible heat pump systems and is used in system using secondary loops, because of the close temperature approach and high efficiency capability of this unit type. A Brazed plate heat exchanger used in a chiller or heat pump may successfully contributed to the added value and cost reduction of the total construction. |
 |
| - Will reduce size and cost of
complete chiller and heat pump structure - Is simpler and thus lower cost to mount and insulate. - Reduces the mount of refrigerant. - With its light weight contributes to the cost reduction of transportation and installation. |
 |
 |
 |
[ EVALPORATION SUS 316L SERIES ] |
| Model No. | HP |
W/T |

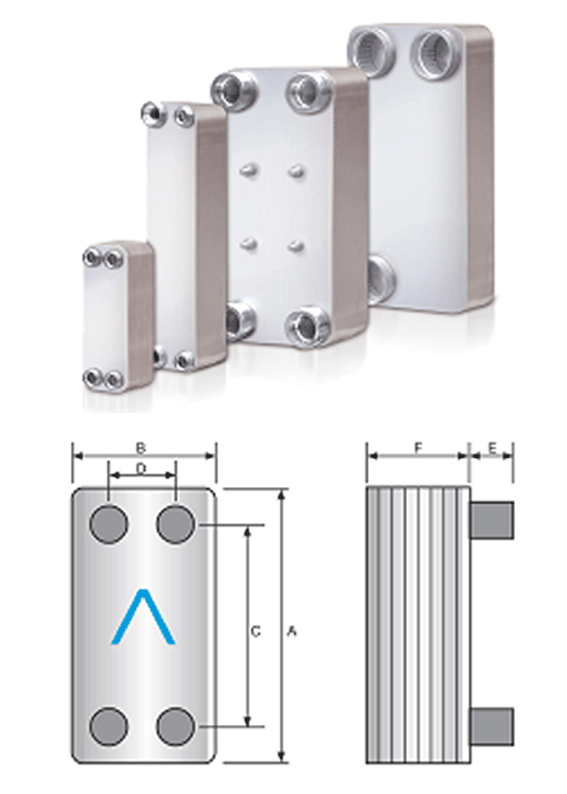

DIMENSION | REFRIGERANT PIPE | WATER PIPE | |||||||
|
A |
B |
C |
D |
E |
F |
INLET | OUTLET | INLET | OUTLET | |||
| GB10-010C | 1 |
4.1 |
300 |
120 |
258 |
78 |
28 |
28 |
7/8(20A) | 7/8(20A) | 1-1/8(25A) | 1-1/8(25A) |
| GB10-020C | 2 |
5.9 |
300 |
120 |
258 |
78 |
28 |
48 |
7/8(20A) | 7/8(20A) | 1-1/8(25A) | 1-1/8(25A) |
| GB10-030C | 3 |
7.6 |
300 |
120 |
258 |
78 |
28 |
68 |
7/8(20A) | 7/8(20A) | 1-1/8(25A) | 1-1/8(25A) |
| GB10-050C | 5 |
11.1 |
300 |
120 |
258 |
78 |
28 |
108 |
7/8(20A) | 7/8(20A) | 1-1/8(25A) | 1-1/8(25A) |
| GB25-016EC | 3 |
6.3 |
518 |
120 |
476 |
78 |
28 |
47 |
7/8(20A) | 7/8(20A) | 1-1/8(25A) | 1-1/8(25A) |
| GB25-030EC | 5 |
9.6 |
518 |
120 |
476 |
78 |
28 |
81 |
7/8(20A) | 7/8(20A) | 1-1/8(25A) | 1-1/8(25A) |
| GB25-038EC |
7.5 |
11.5 |
518 |
120 |
476 |
78 |
28 |
100 |
7/8(20A) | 7/8(20A) | 1-1/8(25A) | 1-1/8(25A) |
|
[ CONDENSATION SUS 316L SERIES ] |
| Model No. | HP |
W/T |
DIMENSION | REFRIGERANT PIPE | WATER PIPE | |||||||
|
A |
B |
C |
D |
E |
F |
INLET | OUTLET | INLET | OUTLET | |||
| GB25-016CC | 3 |
6.3 |
518 |
120 |
476 |
78 |
28 |
47 |
1-1/8 | 1-1/8 | 1-1/8 | 1-1/8 |
| GB25-030CC | 5 |
9.6 |
518 |
120 |
476 |
78 |
28 |
48 |
1-1/8 | 1-1/8 | 1-1/8 | 1-1/8 |
| GB25-038CC | 7.5 |
11.5 |
518 |
120 |
476 |
78 |
28 |
100 |
1-1/8 | 1-1/8 | 1-1/8 | 1-1/8 |
| GB25-058CC | 710 |
16.3 |
518 |
120 |
476 |
78 |
28 |
148 |
1-1/8 | 1-1/8 | 1-1/8 | 1-1/8 |
| GB50-030CC | 15 |
21.8 |
524 |
242 |
441 |
159 |
45 |
279 |
1-5/8 | 1-1/8 | 2-1/2 | 2-1/2 |
| GB50-040CC | 20 |
26.1 |
524 |
242 |
441 |
159 |
45 |
279 |
1-5/8 | 1-1/8 | 2-1/2 | 2-1/2 |
| GB50-090CC |
30 |
51.8 |
524 |
242 |
441 |
159 |
45 |
231 |
1-5/8 | 1-1/8 | 2-1/2 | 2-1/2 |
| GB50-110CC |
40 |
60.4 |
524 |
242 |
441 |
159 |
45 |
279 |
1-5/8 | 1-1/8 | 2-1/2 | 2-1/2 |
| GB50-140CC |
50 |
70.3 |
524 |
242 |
441 |
159 |
45 |
351 |
2-1/8 | 1-1/8 | 2-1/2 | 2-1/2 |
| GB50-160CC |
60 |
82 |
524 |
242 |
441 |
159 |
45 |
400 |
2-1/8 | 1-1/8 | 1-1/8 | 1-1/8 |
