- Protects the compressor, especially during intermittent operation.
- Liquid is temporarily held and metered back to the compressor, along
with any oil, at a controlled rate.
- Solid copper connections.

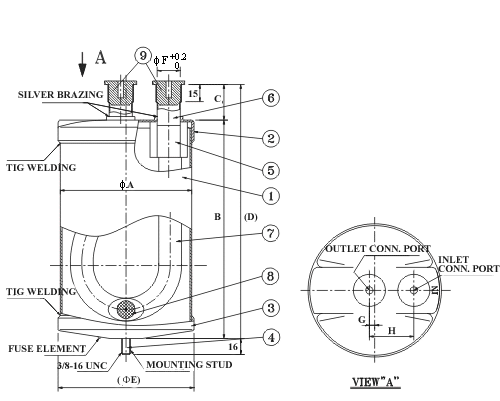

- "U" tube design for maximum flow of refrigerant and minimum
oil entrapment.
- Power paint exterior coating surpasses 500 hour ASTM salt spray
tests. |
|
| MODEL
NO. |
DIMENSION
(mm) |
CONNECTION (inch) |
CAPACITY |
|
A |
B |
C |
D |
E |
F |
G |
| ACC050-25C-0430 |
127 |
255 |
33 |
288 |
132 |
19.2 |
5 |
3/4 |
2500cc |
| ACC050-40C-0870 |
127 |
351.5 |
33 |
384.5 |
132 |
22.4 |
5 |
7/8 |
4000cc |
| ACC060-47C-1810 |
152.4 |
331 |
50 |
381 |
157 |
28.8 |
5 |
1 1/8 |
4700cc |
| ACC035-10C-0850 |
89.1 |
219 |
33 |
252 |
94 |
16.0 |
21.55 |
5/8 |
1000cc |
| ACC035-10C-0430 |
89.1 |
219 |
33 |
252 |
94 |
19.2 |
21.55 |
3/4 |
1000cc |
| ACC050-20C-0870 |
127 |
196 |
33 |
229 |
132 |
22.4 |
5 |
7/8 |
2000cc |
| ACC050-34C-0870 |
127 |
308 |
33 |
341 |
132 |
22.4 |
5 |
7/8 |
3400cc |
| ACC060-34C-1810 |
152.4 |
220 |
50 |
270 |
157 |
28.8 |
5 |
1 1/8 |
3400cc |
| ACC060-38C-1810 |
127 |
340 |
36.5 |
376.5 |
132 |
28.8 |
35 |
1 1/8 |
3800cc |
| ACC060-40C-1830 |
152.4 |
273 |
50 |
303 |
132 |
35.2 |
43 |
1 3/8 |
4000cc |
| ACC060-60C-1830 |
152.4 |
393 |
50 |
443 |
132 |
35.2 |
43 |
1 3/8 |
6000cc |
|

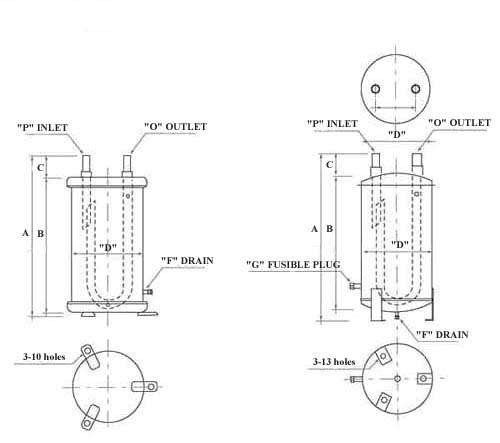

MODEL NO. |
NOM (HP) |
DIMENSION (mm) |
CONNECTION (inch) |
L/T |
|
A |
B |
C |
D |
E |
F |
G |
O |
P |
|
JA-1000V |
10 |
425 |
360 |
55 |
165 |
80 |
1/4 |
- |
1 3/8 |
5.8 |
|
JA-1500V |
15 |
640 |
480 |
90 |
216 |
150 |
3/8PT |
1 5/8 |
13 |
|
JA-2000V |
20 |
660 |
500 |
267 |
140
|
2 1/8 |
23 |
|
JA-3000V |
30 |
760 |
600 |
28 |
|
JA-4000V |
40 |
318 |
160 |
35 |
|
JA-5000V |
50 |
790 |
630 |
356 |
200 |
44 |
|

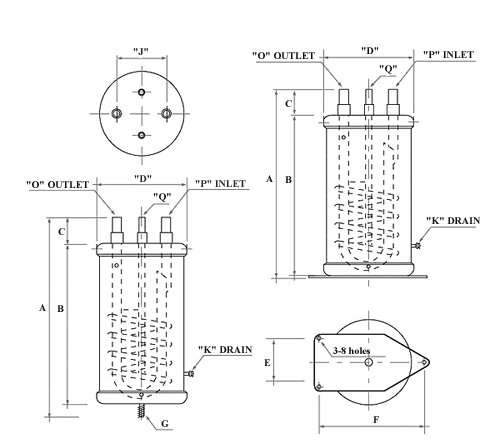

MODEL NO. |
NOM (HP) |
DIMENSION (mm) |
CONNECTION (inch) |
L/T |
|
A |
B |
C |
D |
E |
F |
G |
J |
O |
P |
Q |
K |
|
JAHE-0300V |
3 |
325 |
280 |
55 |
114 |
70 |
135 |
- |
58 |
7/8 |
3/8 |
1/4 |
2 |
|
JAHE-0500V |
5 |
360 |
310 |
139 |
75 |
1 1/8 |
1/2 |
3.4 |
|
JAHE-0750V |
7.5 |
395 |
340 |
80 |
150 |
1 3/8 |
5/8 |
3.8 |
|
JAHE-1000V |
10 |
425 |
360 |
165 |
- |
- |
M10 |
80 |
3/4 |
5.8 |
|
JAHE-1500V |
15 |
640 |
480 |
90 |
216 |
- |
100 |
1-5/8 |
1 1/8 |
7/8 |
13 |
|
JAHE-2000V |
20 |
660 |
500 |
257 |
140 |
2 1/8 |
1 3/8 |
1 1/8 |
23 |
| JAHE-3000V |
30
|
760 |
600 |
28 |
| JAHE-4000V |
40 |
790 |
610 |
110 |
318 |
160 |
2
1/8 |
35 |
| JAHE-5000V |
50
|
810
|
630
|
110 |
356 |
200 |
44 |

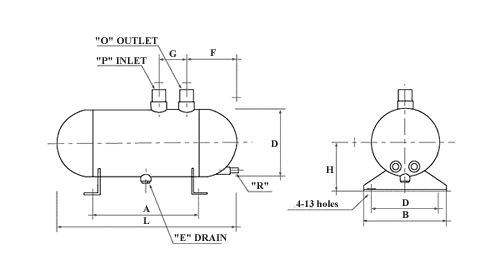

| MODEL
NO. |
NOM
(HP) |
DIMENSION
(mm) |
CONNECTION
(inch) |
|
L |
A |
B |
C |
D |
J |
F |
G |
H |
E |
O |
P |
R |
| JAHE-1500H |
15 |
470 |
350
|
200
|
150
|
216 |
90
|
120
|
80
|
190 |
1/4
|
1 5/8
|
7/8 |
| JAHE-2000H |
20 |
500 |
267
|
220
|
2 1/8 |
1 1/8
|
| JAHE-3000H |
30 |
600 |
|
