- Nara
Vibration Absorbers are designed for installation in the suction and
discharge lines of air conditioning and refrigeration systems to dampen
the transmission of compressor-induced vibration through system piping.
- Nara are constructed of deep pitch corrugated tubing for increased flexibility and vibration absorption, covered by high tensile wire braid for superior strength. - Tubing and braid are reinforced by ferrules at each end, and connected to female copper tube ends by high temperature braze alloys. - Each Nara is pressure tested then carefully vacuum tested using a highly sensitive helium mass spectrometer leak detection device. |
 |
 |
 - Hose and copper tube are braze welded. - Cleaned and dehydrated for refrigeration service. - Each unit pressure and vacuum tested, cleaned, dehydrated and sealed in plastic film. - Complete physical and chemical analysis of all basic components. - Size to fit 5/8" through 2 1/8" O.D. have a corrugated stainless core with high tensile stainless braid covering and copper tube ends. - Components checked and inspected at various phases of assembly. - Ends accurately sized. - Final inspection. |
 |
|
MODEL NO. |
NORMAL SIZE (inch) |
WEIGHT (g) |
DIMENSION (inch) |
MAX WORKING PRESSURE (psiG) |
BURST PRESSURE (psiG) |
||||

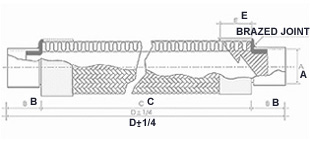

| A (I.D) |
B ( 1/8) |
C (1/8) |
D (1/4) |
E (1/16) |
|||||
| NF-1 | 3/8 | 130 |
3/8 | 13/16 | 6-15/16 | 8-9/16 | 1/2 | 500 | 2500 |
| NF-2 | 1/2 | 135 | 1/2 | 7/8 | 7-1/4 | 9 | 1/2 | ||
| NF-3 | 5/8 | 200 | 5/8 | 15/16 | 8 | 9-7/8 | 11/16 | ||
| NF-4 | 3/4 | 220 | 3/4 | 1-1/4 | 8-1/16 | 10-9/16 | 11/16 | ||
| NF-5 | 7/8 | 260 | 7/8 | 1-7/16 | 9-1/8 | 12 | 13/16 | ||
| NF-6 | 1-1/8 | 400 | 1-1/8 | 1-13/16 | 9-7/16 | 13-1/16 | 13/16 | ||
| NF-7 | 1-3/8 | 550 | 1-3/8 | 2 | 11-1/2 | 15-9/16 | 7/8 | ||
| NF-8 | 1-5/8 | 920 | 1-5/8 | 2-1/4 | 12-3/8 | 16-7/8 | 15/16 | ||
| NF-9 | 2-1/8 | 1,335 | 2-1/8 | 2-3/4 | 15-3/16 | 20-5/8 | 15/16 | 390 | 1950 |
| NF-10 | 2-5/8 | 1,730 | 2-5/8 | 3-1/8 | 18-1/16 | 24-5/16 | 1-1/4 | 340 | 1700 |
| NF-11 | 3-1/8 | 3,830 | 3-1/8 | 3-7/16 | 20 | 26-15/16 | 1-1/2 | 300 | 1500 |
| NF-12 | 3-5/8 | 3,830 | 3-5/8 | 4-1/8 | 24 | 32-3/16 | 1-9/16 | 175 | 525 |
| NF-13 | 4-1/8 | 4,431 | 4-1/8 | 4-7/16 | 24 | 32-15/16 | 1-9/16 | 175 | 525 |
