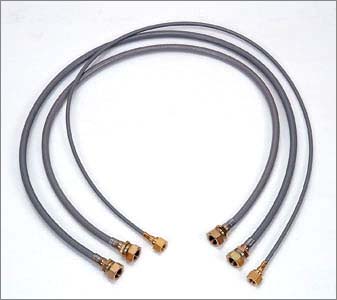

- The advent of new refrigerants and environmental issues has lead to re_thinking refrigernat systemsm leaks. - One of the major concerns is the reduction of refrigerant loss into the atmosphere due to system leaks. - Service and maintenance people are well aware of how much frequently systems can fail due to fracture of cooper tubing. - To overcome this problem there has been an increase in the use of flexible hoses for this application. RH-01 / RH-02 / RH-04   - Suitable for all CFC, HFC & HCFC refrigerants, natural gases and ammonia. - Lining is made out of convoluted polyamide, specially formulated to suit new refrigerant gasses requirements. - Reinforced with high tensile polyester braid. - Working temperature : -40℃ to +130℃ maximum. - Working pressure : 100 ~ 200 bar - Minimum bend radius : 15 ~ 30 mm Model no. I.D O.D Working Pressure Min Bend Radius Color mm mm mmMPa(kgf/㎠) mm RH-01 φ2.5 φ5.5 19.6(200) 15 GRAY  RH-02 φ3.6 φ7.0 9.8(100) 20 RH-04 φ6.3 φ10.4 30
