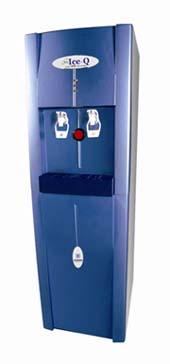

| Nara Water Purifier shall present you not only Cold & Hot water but also Crystal Ice chip too. Nara Technology assures of clean service for your health.  - Exceptional function in one solution to serve fresh water, hot water and ice chip - Compact size but heavy duty - 4 filter type to purify for clean service |
 |
 |
 |
| Model | BI-3224 | |

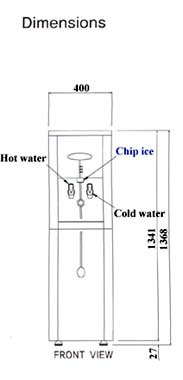

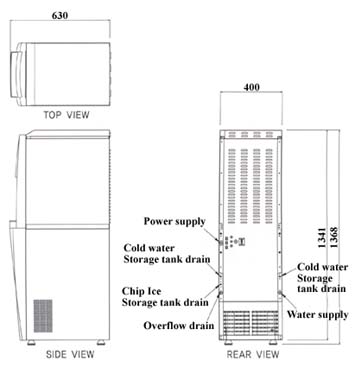

| Exterior Dimension(WxDxH) | 400 x 615 x 1375 mm | |
| Clean Water | 1st Filter | Sediment Filter(4 Liters/Min 10") |
| 2nd Filter | Pre Carbon Filter(4 Liters/Min 10") | |
| 3rd Filter | Post Carbon Filter(4 Liters/Min 10") | |
| 4th Filter | Ultra Filter(4 Liters/Min 10") | |
| Ice | Ice making system | Exterior Freezing System(cu, coil) |
| Ice type | Chip ice | |
| Ice making capa. | 4.3kg/hr | |
| Storage ice capa. | 2kg | |
| Cold Water | Storage cold water capa. | 3.2 Liters |
| Refrigeration system | Exterior Heating System | |
| Hot Water | Heating system | Exterior Heating System |
| Temp. | 85 ~ 90กษ | |
| Storage hot water capa. | 2 Liters | |
| Heater | 450W | |
| Temp. control | Thermostat | |
| Sensor | Bimetal(auto. reset) | |
| Over heat | Bimetal(menu. reset) | |
| Refrigeration System | Compressor | Samsung/Korea/6A1B(1/2HP) Start/Run Capa. |
| Refrigerant | Capillary tube(Cold water) | |
| Expansion valve(Ice maker) | ||
| Condensor | Wire, 1/5HP)x2 sets(Air cooled type) | |
| Refrigerant | R-134a(270g) | |
| Usage Standard | Purpose | Purify the Tap water & Underground water |
| Use | for home, office use | |
| Usage Condition | Permitted hydraulic pressure | Lower than 6kg/cm |
| Permitted water Temperature | 5 ~ 40กษ | |
