| THE
ADVANCED PANEL COOLERS guarantee PERFECT TROUBLE-FREE in every ELECTRONIC
DEVICE & EQUIPMENTS for costless of maintenance and long life. THE MOST ATTRACTION is applicable for CARAVAN AIR-CONDITIONING on leisure journey with family. * No need to invite Trouble-shooter * Slim & compact * Moisture & Water free in system * High performance * Perfect protection for dust-free. |
|
Designed cooling unit by example of TRUMA CARAVAN........ |
|

|
 |

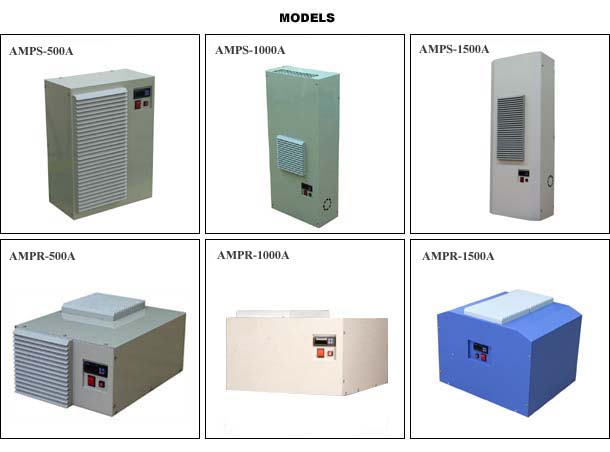

| Model [Wall Type] | AMPS-500A | AMPS-1000A | AMPS-1500A |
| Cooling Capacity | 450 Kcal/h(500W/h) | 1000 Kcal/h(1160W/h) | 1450 Kcal/h(1700W/h) |
| Power Consumption | 600W(at Heater on) | 980W(at Heater on) | 1350W(at heater on) |
| Temp. Range | 20”-50”/40%RH | ||
| Starting Current | 10A | 15A | 20A |
| Running Current | 3.0A | 4.4A | 6.2A |
| Refrigerant | R134a | ||
| Noise | 58db | 60db | |
| Dimension( | 355Wオ180Dオ470H | 400Wオ190Dオ900H | 400Wオ230Dオ1050H |
| Power Source | 1Ø 200/220V, 50/60 Hz | ||
| Weight | about 25kg | about 40kg | about 52kg |
| Model [Roof Type] | AMPR-500A | AMPR-1000A | AMPR-1500A |
| Cooling Capacity | 450 Kcal/h(500W/h) | 1000 Kcal/h(1160W/h) | 1450 Kcal/h(1700W/h) |
| Power Consumption | 600W(at Heater on) | 980W(at Heater on) | 1350W(at heater on) |
Temp. Range |
20”-50”/40%RH | ||
| Starting Current | 10A | 15A | 20A |
| Running Current | 3.0A | 4.4A | 6.2A |
| Refrigerant | R134a | ||
| Noise | 58db | 60db | |
| Dimension | 358Wオ450Dオ206H | 435Wオ510Dオ260H | 600Wオ430Dオ370H |
| Power Source | 1Ø 200/220V, 50/60 Hz | ||
| Weight | about 25kg | about 35kg | about 40kg |
| Option | Designing for CARAVAN | ||
